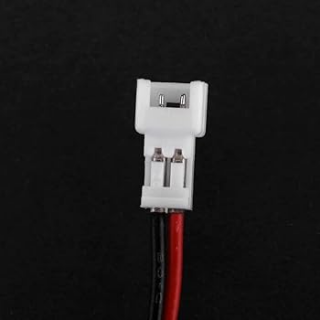

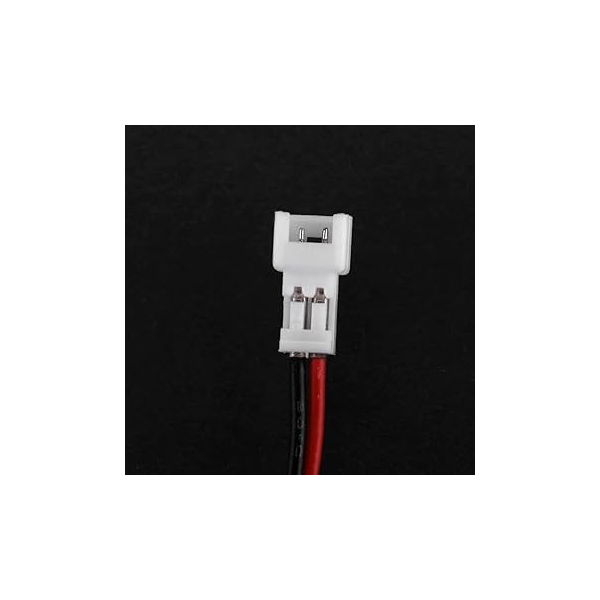

2pin JST connector M+F

Send to a friend

Share on Facebook!

Remove this product from my favorite's list.
Add this product to my list of favorites.

1,25 €

9,42 HRK

SKU: CK-2800-077

Availability : In Stock

Quantity :

No products added yet

Secure payment

More info

Description

The JST XH series' disconnectable, 2.5 mm (0.984”) pitch, crimp-style connector was developed based on the high reliability and versatility of their NH series connectors. The connector is very small with a mounting height of 9.8 mm. These wire-to-board connectors are typically used to bring power to a PC board. XH series connectors are available various positions (we carry up to 10 position). They fit wire sizes ranging from 22 to 30 AWG. The XH series' current rating is 3A AC/DC (250 VAC/DC). All XH series connectors are compliant with RoHS standards.

Features
Current rating: 3A AC/DC (AWG #22) Temperature range: -25°C to 85°C (including temperature rise in applying electrical current) Contact resistance Initial value: 10 mΩ (max.) Contact resistance After environmental tests: 20 mΩ (max.) Insulation resistance: 1,000 MΩ (min.) Withstanding voltage: 1,000 VAC/minute Applicable wire: AWG #30 to #22 Applicable PC board thickness: 1.6 mm Voltage rating: 250 VAC/DC
Applications
RC batteries (Li-Po) for charging balance AC power input for PCs and lab equipment
