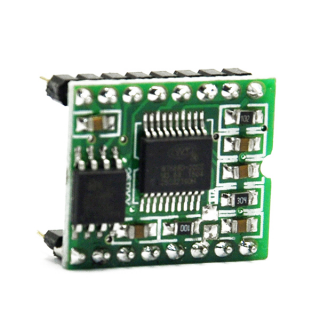

WT588D-16P Voice Module for Arduino

WT588D-16P Voice Module for Arduino

9,00 €


Availability : In Stock

No products added yet

Secure payment
Secure payment

Item Description:


  • Module package (with FLASH memory and peripheral circuits) have DIP16, DIP28, chip packaging has DIP18, SSOP20 and LQFP32 form
  • Built 13Bit/DA converter, and 12Bit/PWM output
  • PWM output can directly drive 0.5W/8Ω speakers, push-pull current abundant upport DAC / PWM output of two ways;
  • Support for loading WAV audio formats;
  • USB download mode, support for online download / offline download; WT588D voice chip, even in the case of electricity, will also be able to download the data to the normal SPI-Flash;
  • Supports MP3 control mode, control mode button, 3 × 8 key combination control mode, parallel control mode, front-line serial control mode, three-wire serial control mode, and three-wire serial control I / O port expansion output mode;
  • Up to 500 segments can be loaded for editing audio;
  • Into the quiet time range 10ms ~ 25min;
  • Chip reset time 5ms;
  • Voltage DC2.8V ~ 5.5V;
  • Static sleep current of less than 10uA;
  • Support load 6K ~ 22KHz audio sampling rate
  • Memory:16M
  • PCB Size:18.30mm*22.25mm
