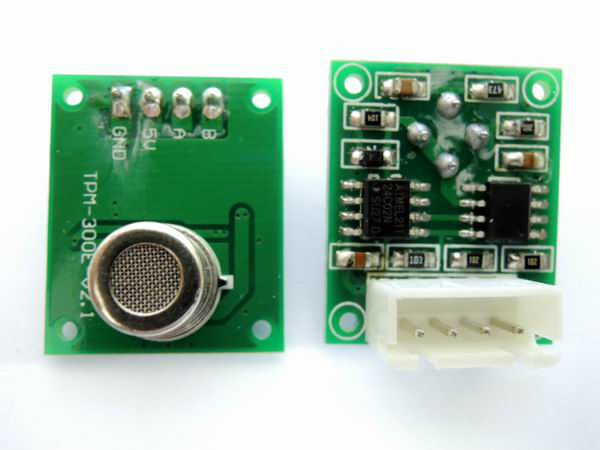

TPM-300 Air Quality Module Intelligent Air Quality Monitoring Module Air Sensor

TPM-300 Air Quality Module Intelligent Air Quality Monitoring Module Air Sensor

Short Description:

  • Model: TPM-300 Air Quality Module Intelligent Air Quality Monitoring Module Air Sensor
  • Brand Name: Chipskey
  • Condition: Brand New With Original Manufacturer

More details...

16,10 €

121,29 HRK

CK-200-287

No products added yet

Secure payment
Secure payment

Detailed Description:

  • Module type: TPM-300
  • Sensor: air quality sensor
  • Gas ​​Detection: ammonia, hydrogen, alcohol, carbon monoxide, methane, propane, Gan, styrene, propylene glycol, alkyl phenol, toluene, ethylbenzene, xylene, formaldehyde and other volatile organic gases, incense smoke, wood, paper smoke burning out
  • Physical Interface: XH2.54-4 Vertical Socket
  • Output: TTL level (built in 200 ohm current limiting resistor)
  • Input voltage: 5 + 0.2vdc (no Reverse Voltage protection)
  • Working current: less than 80mA
  • Preheating time: less than 60 seconds
  • Response time: less than 10 seconds
  • Recovery time: less than 20 seconds
  • Operating temperature: -10-40 C
  • Moisture: less than 95% RH
  • Storage temperature: -20-60 C
  • Storage Humidity: less than 60% RH
  • Dimensions: 24x20x15 (L * W * H)
  • Module weight of about 20gramas
  • Sensitivity: ppm hydrogen
  • The sensitivity Attenuation: less than 1% / year
