SainSmart Solid State Relay module - 8-channel - 5V

On sale

SainSmart Solid State Relay module - 8-channel - 5V

Short Description :

  • This item has been assembled, and electrical test passed.
  • Led indicator for each relay.
  • FR-4 Fiber glass PCB ( Double Layer ).
  • PCB thickness: 1.6mm.
  • Size: 155 x 55 x 24 mm ( approximately 6.1 x 2.17 x 0.95 inch ).

More details...

On sale

31,06 €

234,00 HRK

CK-600-131

Availability : In Stock

No products added yet

Secure payment
Secure payment

Detailed Description :

Feature :

This item has been assembled, and electrical test passed.

  • Led indicator for each relay.
  • FR-4 Fiber glass PCB ( Double Layer ).
  • PCB thickness: 1.6mm.
  • Size: 155 x 55 x 24 mm ( approximately 6.1 x 2.17 x 0.95 inch ).

LINK TO VIDEO :

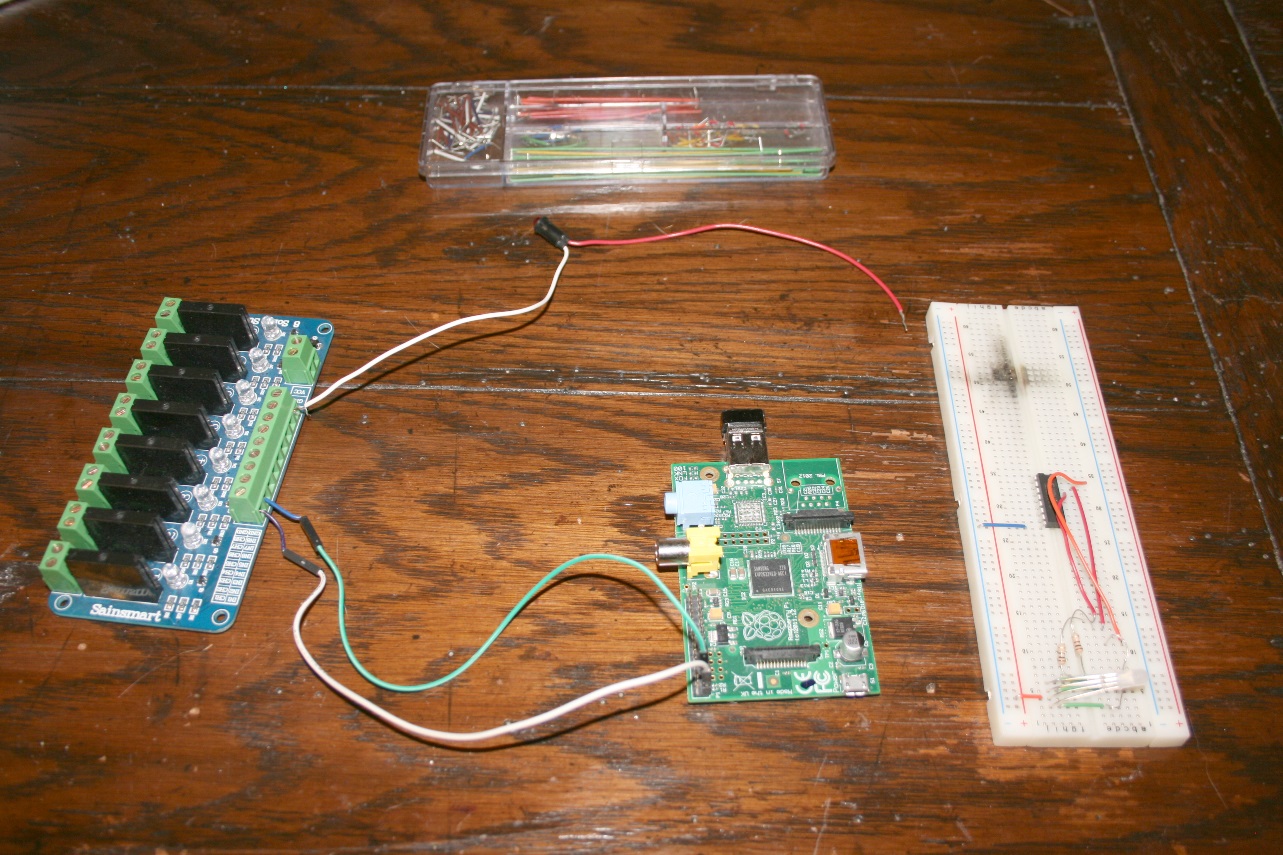

Raspberry Pi GPIO with Sainsmart SSR

SSR Output (each channel) :

  •  Load voltage range: 75 to 264VAC (50/60Hz).
  •  Load current: 0.1 to 2 AMP.

Power supply :

  • 5VDC / 160mA (all channel ON).

Input control signal voltage :

  • 0V - 0.5V Low stage (SSR is OFF),
  • 0.5V – 2.5V (unknown state).
  • 2.5V - 20V High state (SSR is ON).

SSR Spec :

  • Manufacturer: OMRON
  • Part number: G3MB-202P, 5V version.
  • Isolation: Phototriac.
  • Zero cross: Yes.
  • Rated output load: 2A at 100 to 240VAC.(50/60Hz).
  • Load type: General purpose.

Document :
