Makeblock - Me 3-osni akcelometar - žiro senzor

Makeblock - Me 3-osni akcelometar - žiro senzor

22,98 €

MB-001-008

Dostupno : Na Zalihi

Proizvod nije dodan

Secure payment
Secure payment

Opis:

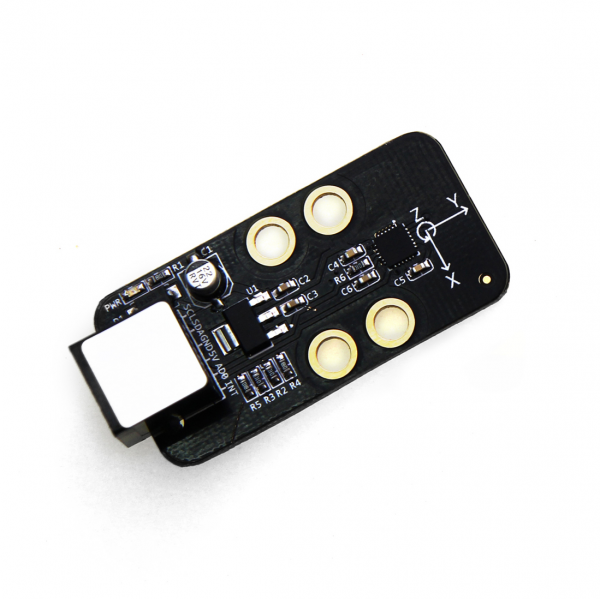

Me 3-Axis Accelerometer and Gyro Sensor is a motion processing module. It can use to measure the angular rate and the acceleration information of your robot or other devices.

Me 3-Axis Accelerometer and Gyro Sensor is based on MPU-6050, it combines a 3-axis gyroscope, 3-axis accelerometer, and a Digital Motion Processor™ (DMP) capable of processing complex 9-axis Motion Fusion algorithms.



Značajke:

  • Tri-Axis angular rate sensor (gyro) with a sensitivity up to 131 LSBs/dps and a full-scale range of ±250, ±500, ±1000, and ±2000dps
  • Tri-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g
  • Digital Motion Processing™ (DMP™) engine offloads complex MotionFusion, sensor timing synchronization and gesture detection
  • Embedded algorithms for run-time bias and compass calibration. No user intervention required
  • I2C Digital-output of 6 or 9-axis MotionFusion data in rotation matrix, quaternion, Euler Angle, or raw data format
  • 16mm interval M4 mounting holes, compatible with Makeblock beams
  • Easy wiring with 6 Pin RJ25 interface



Specifikacije:

  • RatedVoltage: 5V
  • Size:24x48x 32mm(Length x Width x Height)



Dokumentacija:
