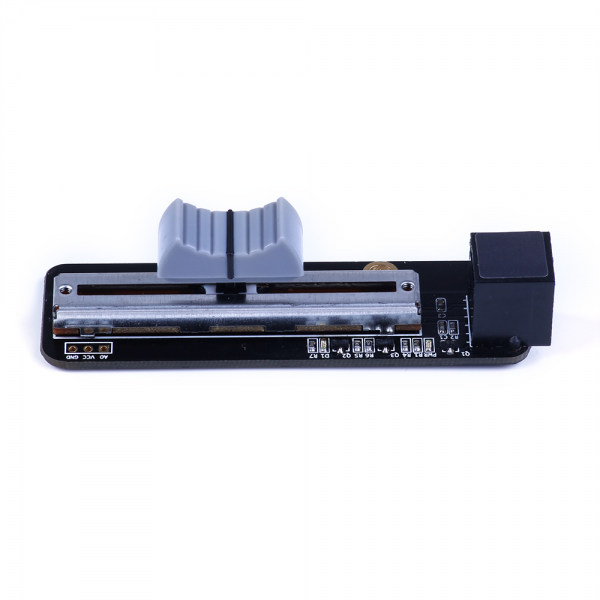

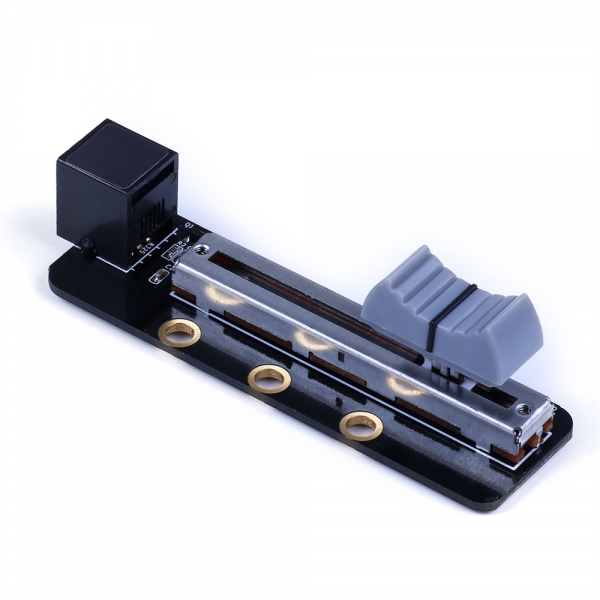

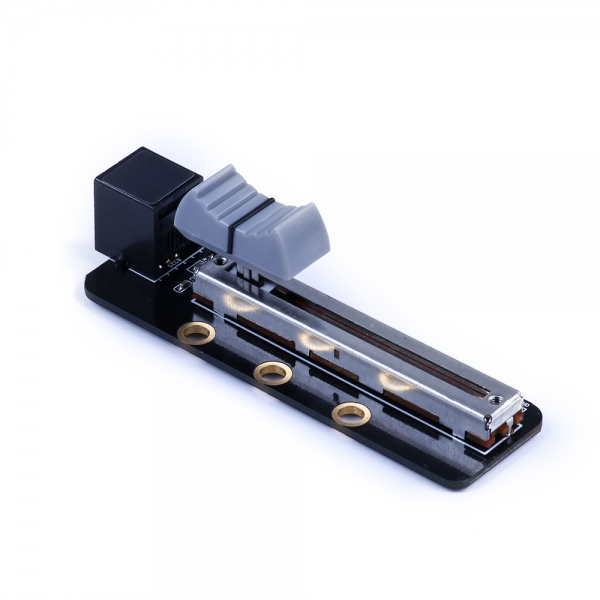

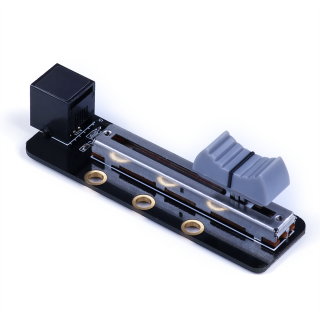

What Is Me Slide Potentiometer?Me Slide Potentiometer is one type of potentiometer that can be used to control volume, light intensity, motor speed, movement control, etc. in interactive projects. |

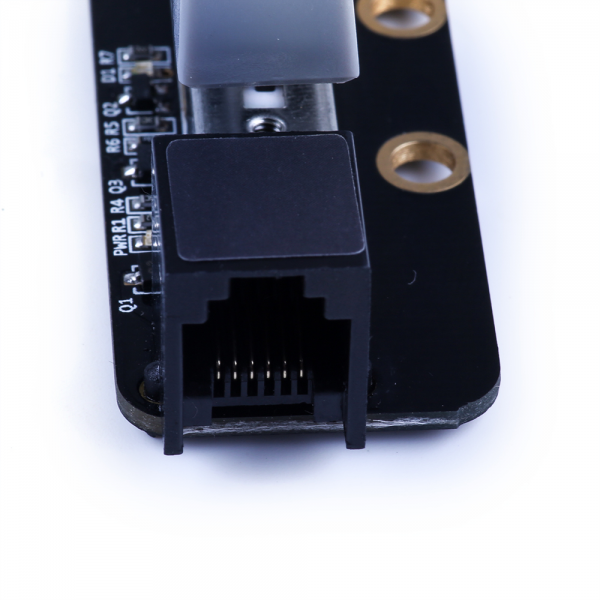

Features• Compatible with the Arduino sensor expansion board; • Three 4mm mounting holes and one RJ25 port for easy assembling; • With one red power indicator and one blue potentiometer indicator; • Anti-reverse connection protection feature. |
 |
 |

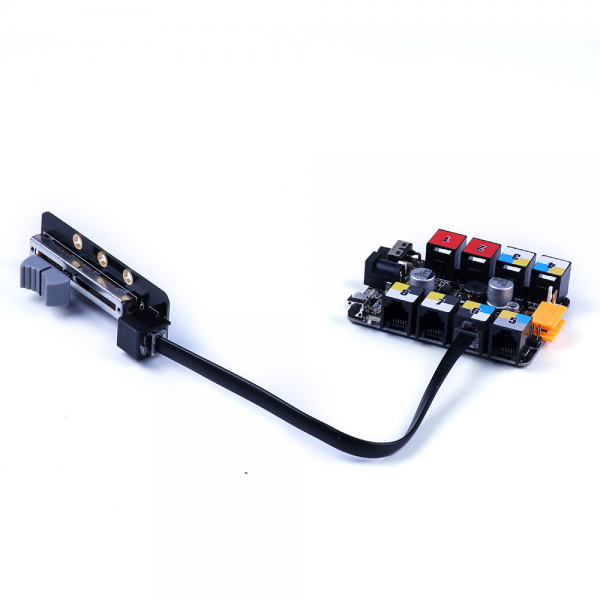

How Does It Work?This Me Slide Potentiometer can be combined with Me Orion(or other Arduino IO/sensor expansion board) in interactive projects. Move the lever from one side to the other, its output voltage will range between 0 V to the VCC you apply. The VCC Me Slide Potentiometer supports vary from 3.3V to 5V. |
NoteIf you connect this module to Me Orion, please make sure you connect it to port 6, port 7 or port 8. |
 |
Size Chart (mm): |
|
Specifikacije | |
|---|---|
| Power Voltage | 3.3-5V |
| Output Type | Analog Signal |
| Interface Type | RJ25 port |
| DIY Port | AO、GND、VCC |
| Potentiometer Rotational Life | 10000 times |
| Product Dimension (L*W*H) | 85 x 25 x 30mm (3.34 x 0.98 x 1.18inch) |
| Net Weight | 15g (0.53oz) |
| Gross Weight | 17g (0.6oz) |
| Part List | 1 × Me Slide Potentiometer |
