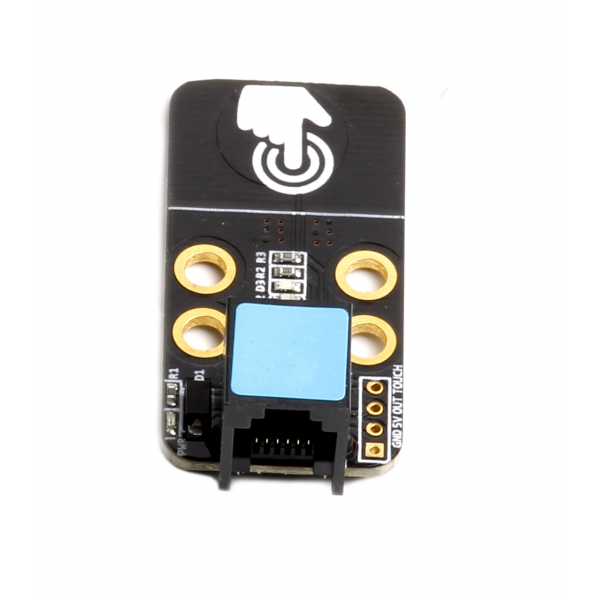

MakeBlock - Me Senzor osjetljiv na dodir

MakeBlock - Me Senzor osjetljiv na dodir

9,19 €

MB-001-010

Dostupno : Na Zalihi

Proizvod nije dodan

Secure payment
Secure payment

Opis:

Me Touch Sensor is a capacitive touch sensor based on TTP223-BA6. It will be triggered by finger touch. You can also connect the "TOUCH" pinhole to some metal construction and touch the metal to trigger the sensor. The sensitivity is fixed to a proper level. If you need to adjust it to fit some special case, you can try to change the value of R3 and C4. It needs 0.5s for the self-calibration after energized. During that, please don't touch the sensor.



Značajke:

  • Contactless touch trigger
  • self-adaptation sensitivity
  • 16mm interval M4 mounting holes, compatible with Makeblock beams
  • 2.54mm pin holes for connecting with Dupont wire
  • Easy wiring with 6P6C RJ25 interface
  • Arduino library for easy programming



Specifikacije:

  • Rated Voltage: 5V
  • Size: 24 x 48 x 16 mm (length x width x height)



Dokumenti:

Download Arduino Library
