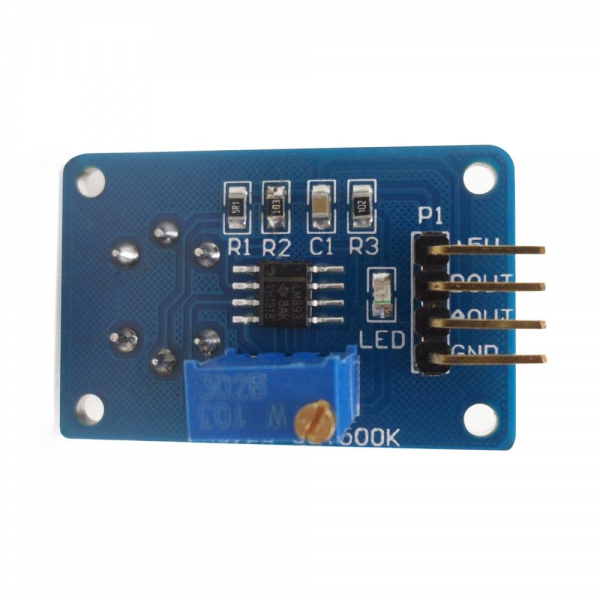

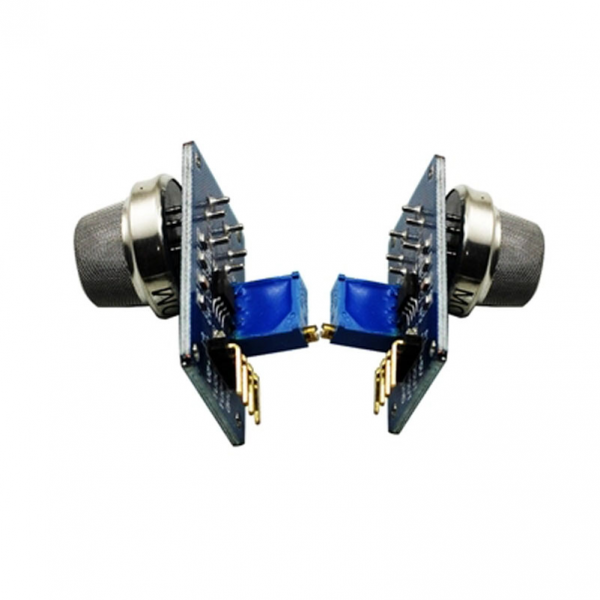

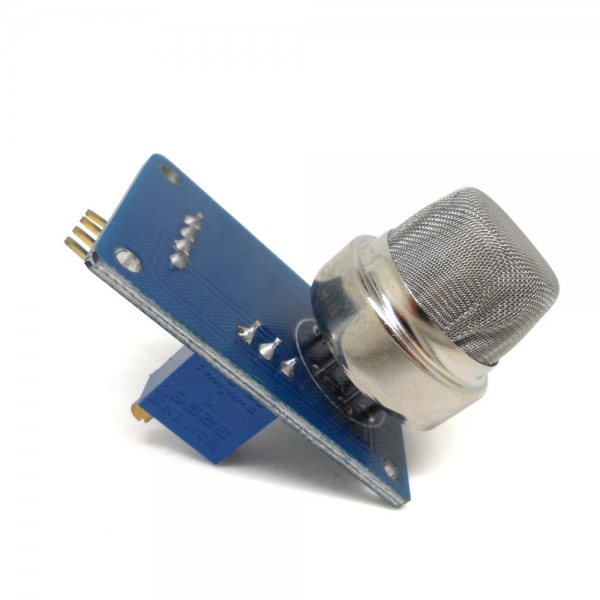

Ozone gas detection sensor module - MQ-131

Pošalji prijatelju

Dijeli na Facebooku

Odstrani ovaj proizvod iz najdražih proizvoda
Dodaj ovaj proizvod u najdraže proizvode

‹ ›

Prikaži sve slike

42,47 €

319,99 HRK

SKU: CK-2300-060

Količina:

Proizvod nije dodan

Secure payment

Opis proizvoda

Detaljan Opis :

Sensitive material of MQ131 gas sensor is O3 SnO2, which with lower conductivity in clean air. When Ozone gas exists. The sensor’s conductivity is more higher along with the gas concentration rising. Please use simple electrocircuit, Convert change of conductivity to correspond output signal of gas concentration.

MQ131 gas sensor has high sensitity to Ozone, also sensitive to O3 CL2, NO2, etc.

Značajke :

Good sensitivity to Ozone in wide range
High sensitivity to Ozone
Long life and low cost
Simple drive circuit

Model No.			MQ-131
Sensor Type			Semiconductor
Standard Encapsulation			Stainless steel
Detection Gas			Ozone
Concentration			10-1000ppm Ozone
Circuit	Loop Voltage	V_c	≤24V DC
	Heater Voltage	V_H	5.0V±0.2V AC or DC
	Load Resistance	R_L	Adjustable
Character	Heater Resistance	R_H	31Ω±3Ω（Room Tem.）
	Heater consumption	P_H	≤900mW
	Sensing Resistance	R_s	50KΩ-500KΩ(in 50ppm O3)
	Sensitivity	S	Rs(in air)/Rs(in 50ppm O3)≥3
	Slope	α	≤0.6 (R50ppm/R10ppm O3)
Condition	Tem. Humidity		20℃±2℃; 65%±5%RH
	Standard test circuit		Vc:5.0V±0.1V VH: 5.0V±0.1V
	Preheat time		Over 48 hours
