Infrared reflection module TCRT5000 proximity switches sensor module For Arduino

Pošalji prijatelju

Dijeli na Facebooku

Odstrani ovaj proizvod iz najdražih proizvoda
Dodaj ovaj proizvod u najdraže proizvode

Kratki Opis:

Model: infrared reflection module TCRT5000 proximity switches sensor module For Arduino
Brand Name: MIC
Condition: Brand New With Original Manufacturer

Više detalja...

‹ ›

Prikaži sve slike

5,98 €

45,04 HRK

SKU: CK-200-252

Količina:

Proizvod nije dodan

Secure payment

Opis proizvoda

Detaljan Opis:

Značajke proizvoda

Dimensions: length 32mm ~ 37 mm; wide 7.5mm; 2mm thick
2. Operating voltage: DC of 3V ~~ 5.5V recommended operating voltage of 5V
Detection distance: 1mm ~ 8mm applicable, the focal length of 2.5mm
Please note that buyers: the test is passed, please get the goods carefully before the issue of the sensor module, sensor module improper operation will cause permanent damage.
Sensors and infrared emitting diodes continuously emits infrared light, when infrared rays emitted is not reflected back or reflected back but the strength is not large enough, the phototransistor has been in the OFF state, the module at this time the output terminal is low, indicating that the diode has been Off state; when the object to be detected in the detection range, the infrared rays are reflected back and the strength is large enough, saturation of the phototransistor, the output terminal of the module is high, indicating that the diode is lit.

+ : connect DC5V positive dc
- : connect DC5V negative dc
S: signal output side, the light activated triode saturation, this
happens when the output of the module for the high level, indicating the diodes
lit up.

Pregled

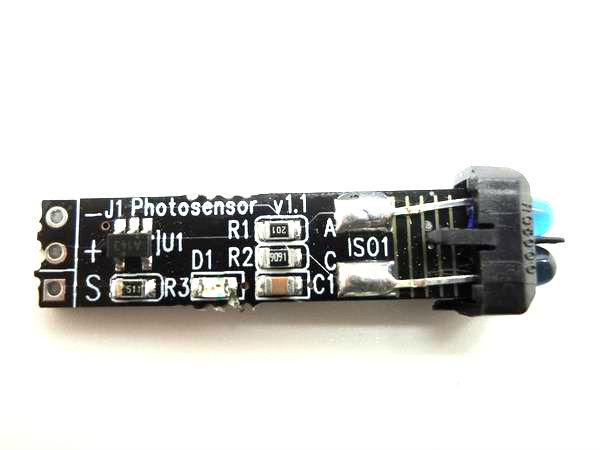

TCRT5000 photoelectric sensor module is based on TCRT5000 electrcal sensor design, a infrared reflection type photoelectric switch. Sensor with high transmission power infrared photodiode and a high sensitivity photoelectric transistor, the output signal by the plastic schmidt circuit, stable and reliable.

Primjena:

1. Meter pulse data sampling
2. Detection of fax paper shredder
3. The obstacle detection
4. Black and white line detection

Osnovni parametri:

1. The shape size: 32 mm to 37 mm long; 7.5 mm wide; 2 mm thick
2. Working voltage: DC 3 V ~ 5.5 V, recommend the working voltage of 5 V
3. The detection distance: 1 mm to 8 mm, focus distance is 2.5 mm

Sensor of infrared emission diode emission infrared unceasingly, the infrared ray is emitted when the intensity of reflected back has not been reflected or but is not big enough, the light activated triode has been in the off state, the output end of the module at this time for the low level, indicating diode has been put out state

Detected objects appear within the scope of testing, infrared light is reflected back and strength is enough big, light activated triode saturation, at this time the output of the module for the high level, indicating diode was lit.
