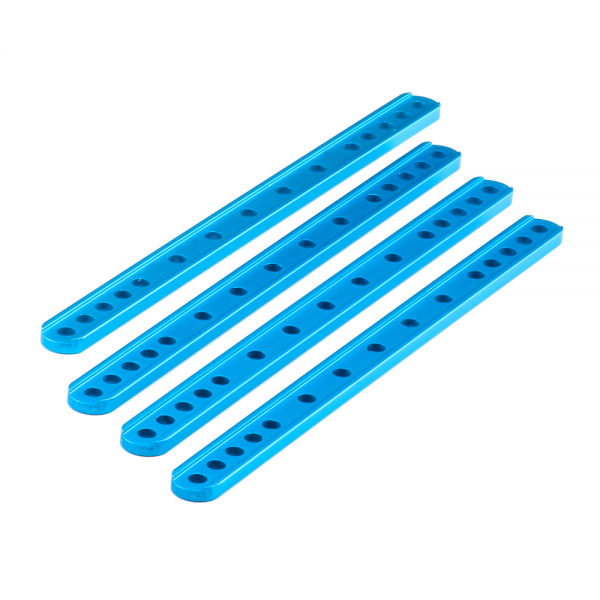

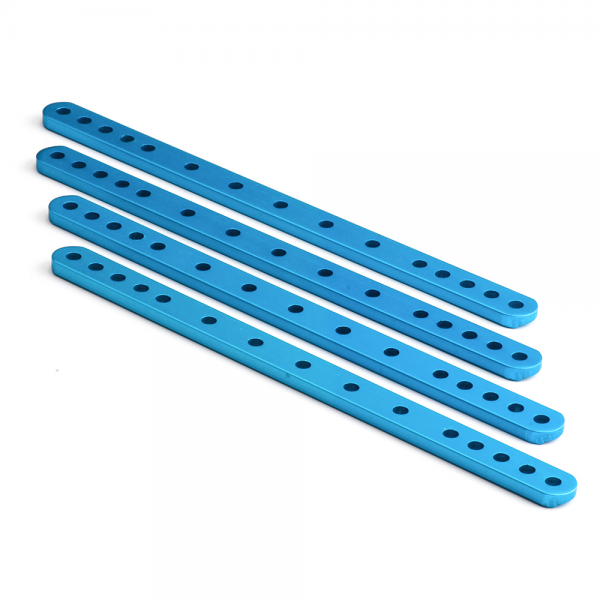

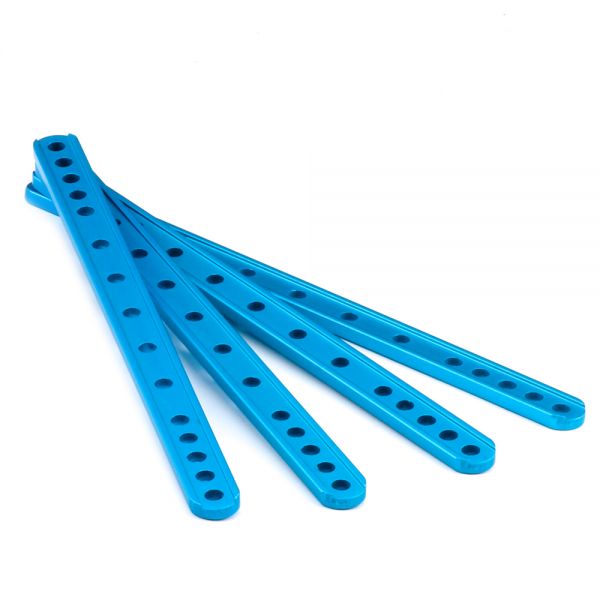

Što su nosači/grede?Beams are the most frequently-used parts of Makeblock platform which can be used to build all kinds of mechanical structures. Beam 0412 series is usually applied as linking-rod parts and comes with different length varying from 36mm to 236mm for various building needs. |
Svestrana upotreba• Works perfectly with Plastic Gear, Timing Pulley, other wheel-related parts, and motor shafts; • Build various linking-rod structures thru different combinations; • Can be used with angular sensor to enables angle feedback between 2 linking-rod parts; • Equipped with slots for easy and flexible connection with Beam 0808 & 0824. |
 |
 |

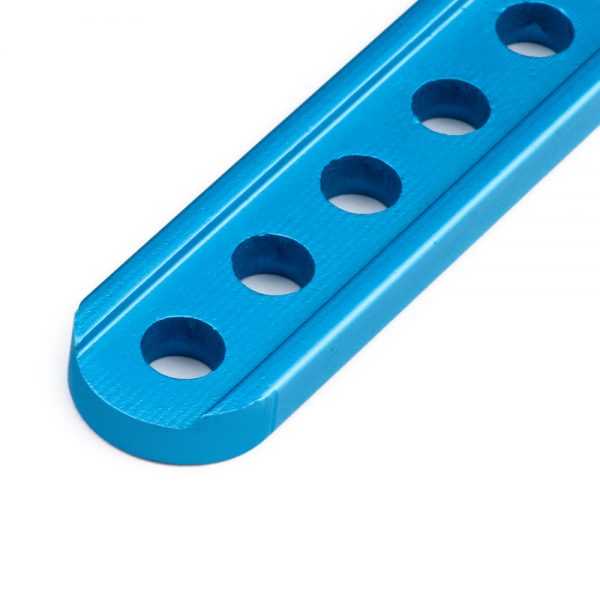

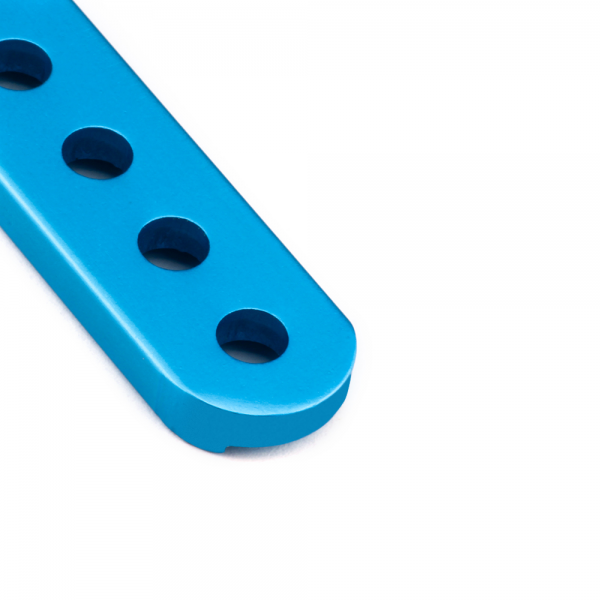

Dizajn i Materijal• Compatible with most Makeblock motions and structure components; • Made from heavy-duty 6061 aluminum extrusion with anodized surface for long-time use; • With 4mm diameter through-holes on 16mm increments. |
PažnjaThis page is for Beam 0412-036 with length of 36mm. For other configuration, please search Beam 0412 in our website. |
 |
Primjer upotrebe:
Dimenzije (mm): |
|
Specifikacije | |
|---|---|
| Material | 6061 Aluminum |
| Diameter of holes | 4mm |
| Cross-section area | 4 x 12mm |
| Length | 172mm |
| Package content | 4 x Beam 0412-172 |
| Dimension | 172 x 12 x 4mm (6.77 x 0.47 x 0.16'') |
| Net Weight | 62.4g (2.2oz) |
