Home>AUTOMATIKA>KOMPONENTE>ARDUINO® PLOČICE>Arduino MKR ENV Shield rev2

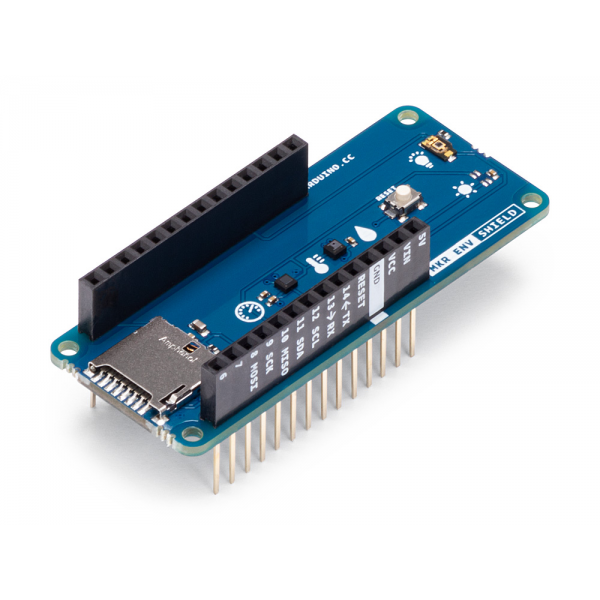

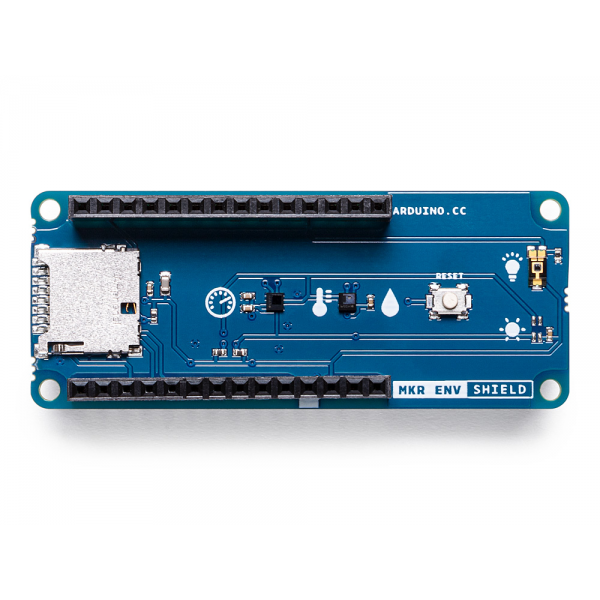

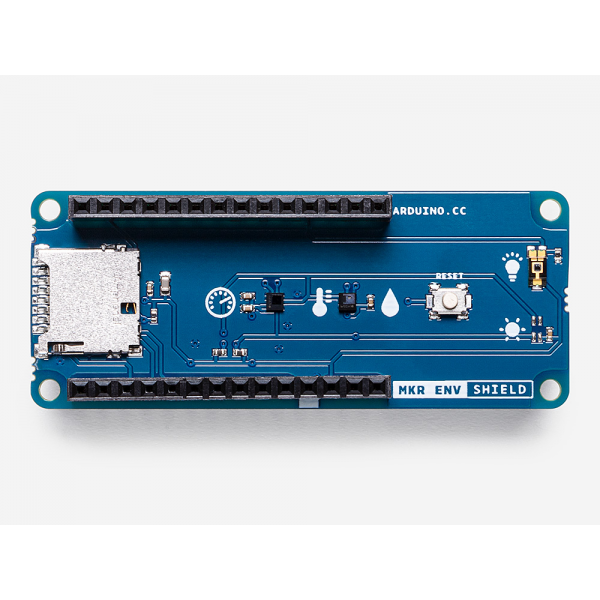

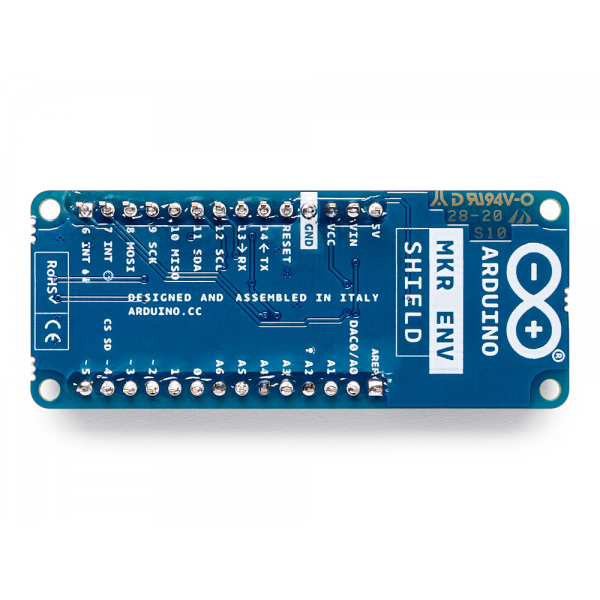

Arduino MKR ENV Shield rev2

Arduino MKR ENV Shield rev2

61,25 €

461,49 HRK

ASX00029

Dostupno: Dostupno na upit

Proizvod nije dodan

Secure payment
Secure payment

Overview

These sensors are of the latest generation and measure:

  • Atmospheric pressure
  • Temperature and humidity
  • Light intensity (in LUX, max 650)

To help you build projects and store the data collected locally, this shield has a slot for a microSD card (not provided).

There is a ready to use library with examples and methods to read values from the different sensors, that provides an easy and smooth integration path.

Sensors used :

  • ST LPS22HB :  atmospheric pressure
  • ST HTS221  : temperature and humidity
  • VISHAY TEMT6000 : Lux of the ambient.
Put: > > > > Arduino MKR ENV Shield rev2
ICs

LPS22HB
TEMT6000
Input Voltage 3.3V
Operating Voltage 3.3V
Ranges

Pressure: 260 to 1260 hPa
rH sensitivity: 0.004% rH/LSB
Humidity accuracy: ± 3.5% rH, 20 to +80% rH
UVA, UVB and UVBI measurment0
0 to 650 Lux
Communication I2C/Analog
Length 61 mm
Width 25 mm
Weight 32 gr.
